Castings we make
Castings for where ordinary steel gives up
Reformers, fired heaters, kilns, crushers and reactors destroy plain steel three ways: heat, corrosion and wear. We cast the parts that hold up, plus the general steel castings around them, to your grade and standard. Here is the full range. Send a drawing for anything not shown.
Heat
Fired heaters and reformers run at 900 to 1,100 °C, where ordinary steel creeps and scales. Our heat-resistant grades hold their shape and strength.
HK40 · HH · HP-Nb · HF
Corrosion
Fuel ash and process gases eat into hot metal. High chromium-nickel grades resist the attack at temperature, in refinery and petrochemical service.
50Cr-50Ni-Nb · HN · SS316
Wear
Coal, clinker and ore grind steel away. Ni-hard, high-chrome and manganese grades take the abrasion at 400 to 500 BHN and keep their edge.
Ni-hard / high-chrome · Mn steelThe parts
What we cast
RefineryTube sheets

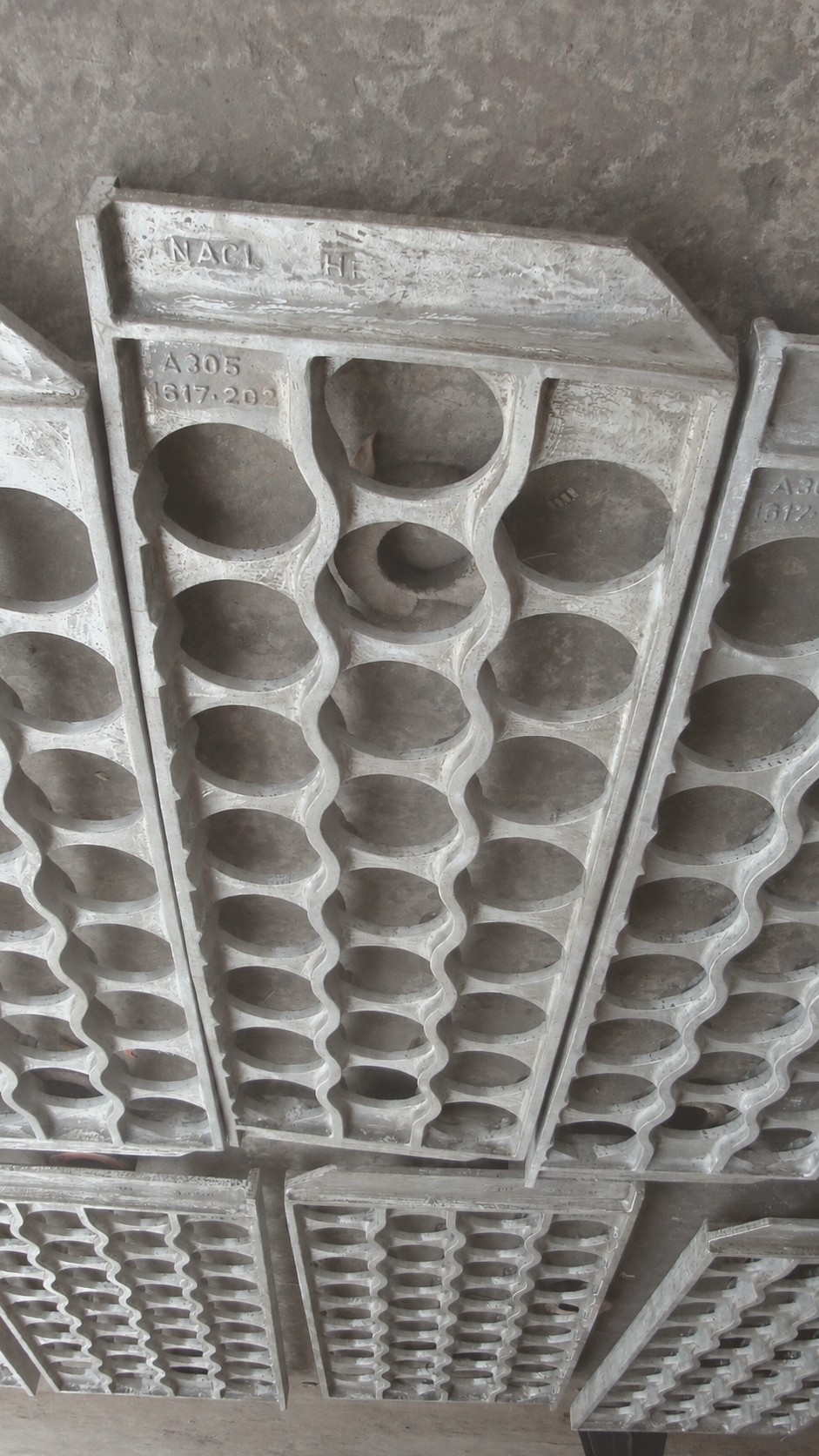

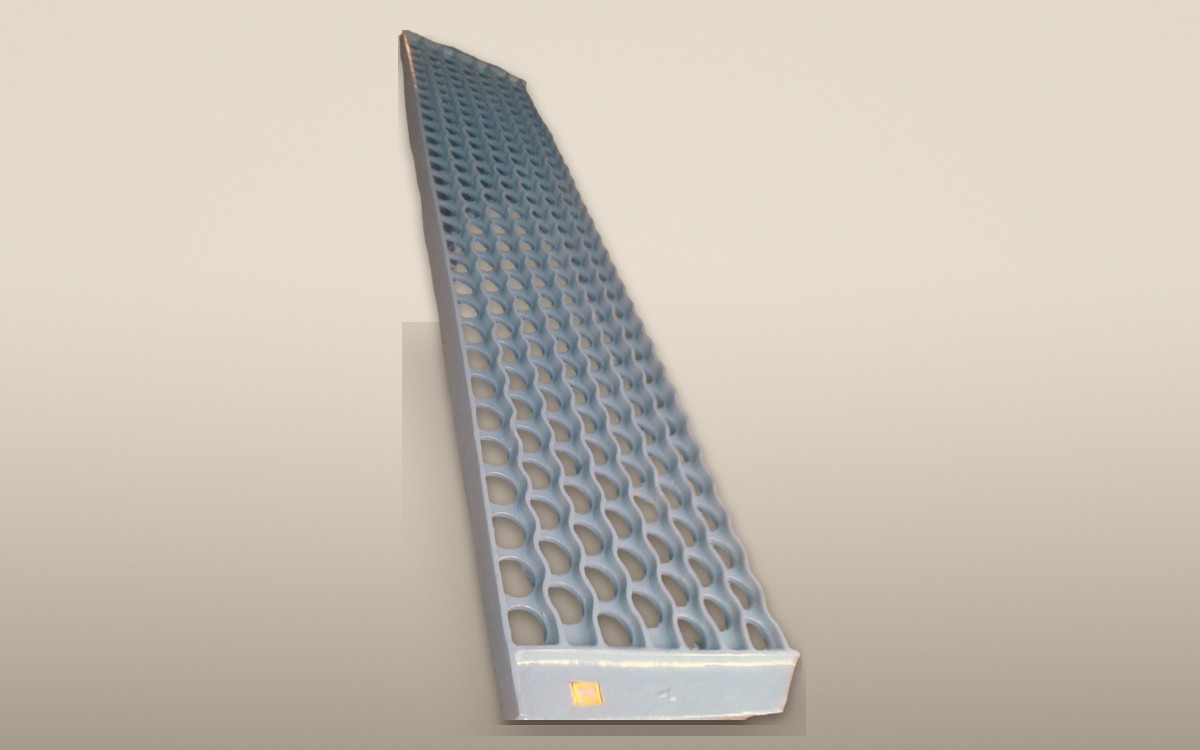

Reformer and heater tube sheets, bored to pattern, in HK40, HP-Nb and CT-15C.

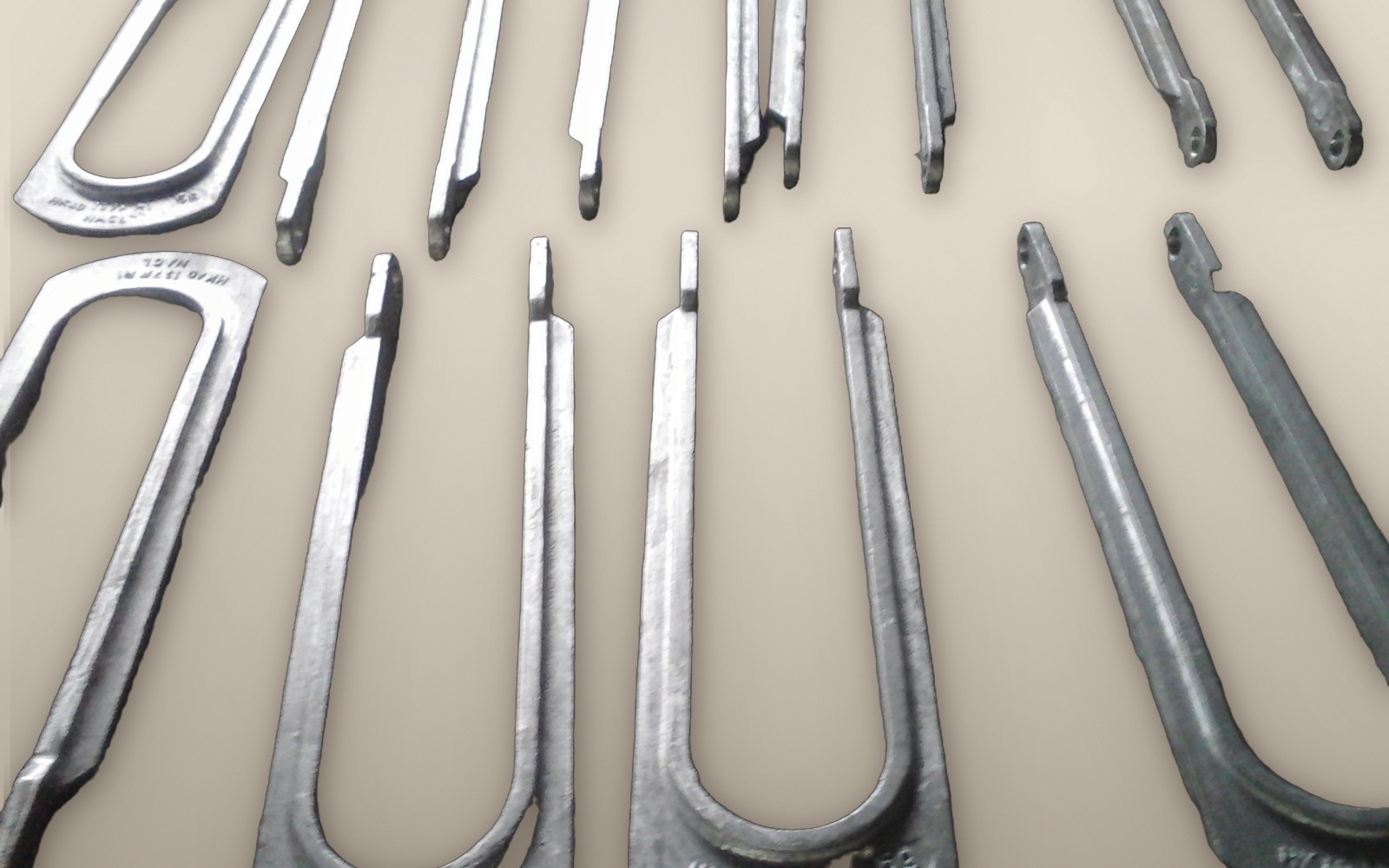

FurnaceTube hangers & supports

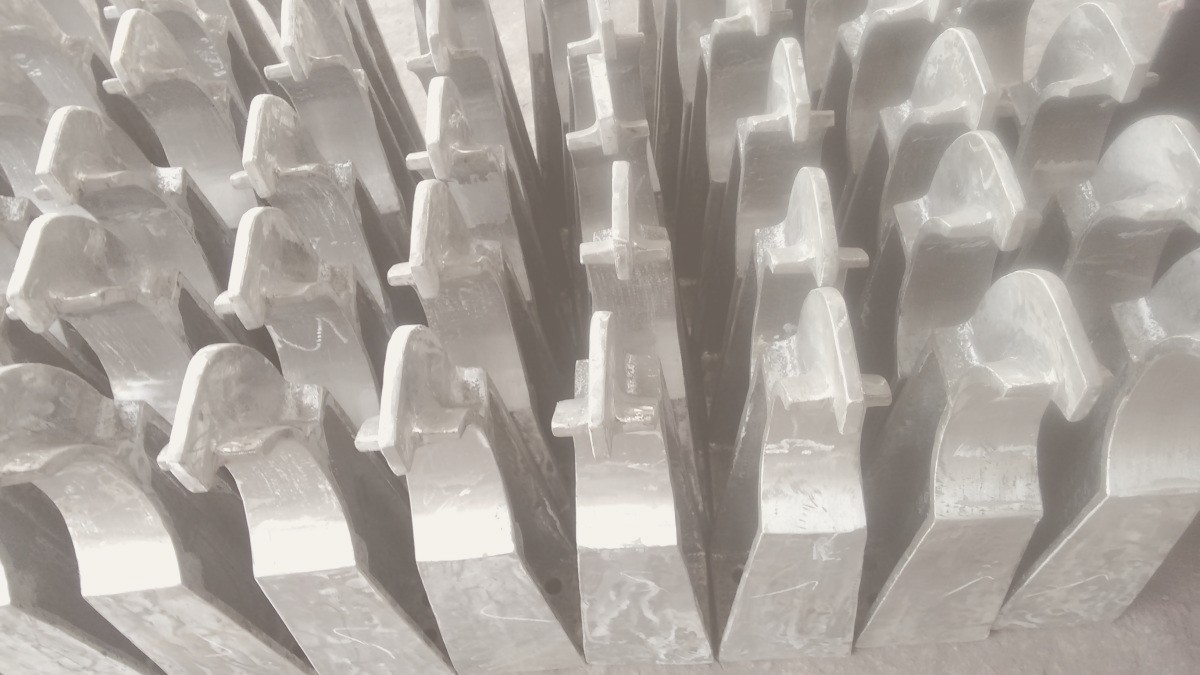

Roof and wall hangers, brackets and locking bars for fired heaters, grade and heat cast in.

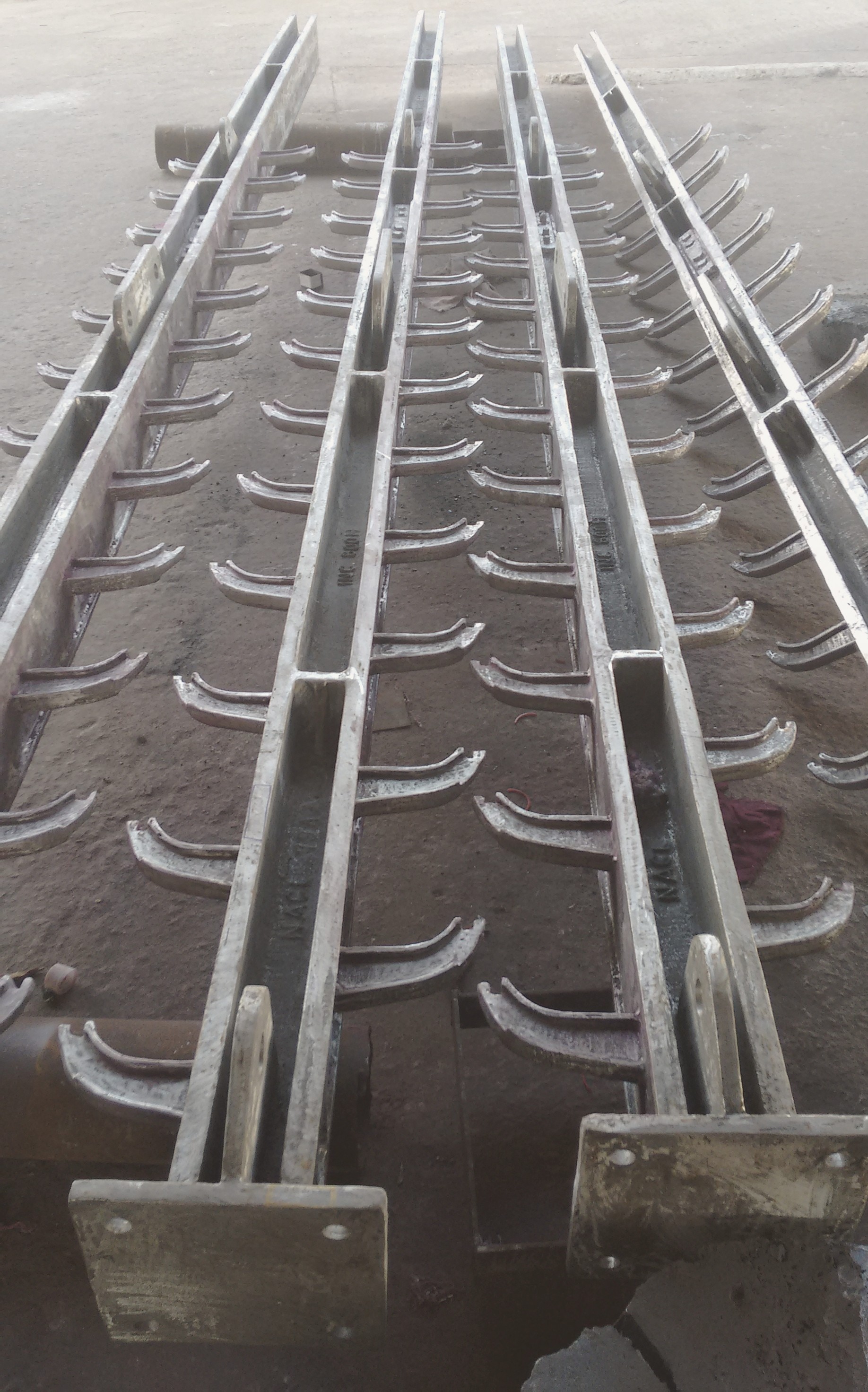

ReformerManifolds & x-mas trees
Reformer manifolds and x-mas tree assemblies in CT-15C and HP-modified grades.

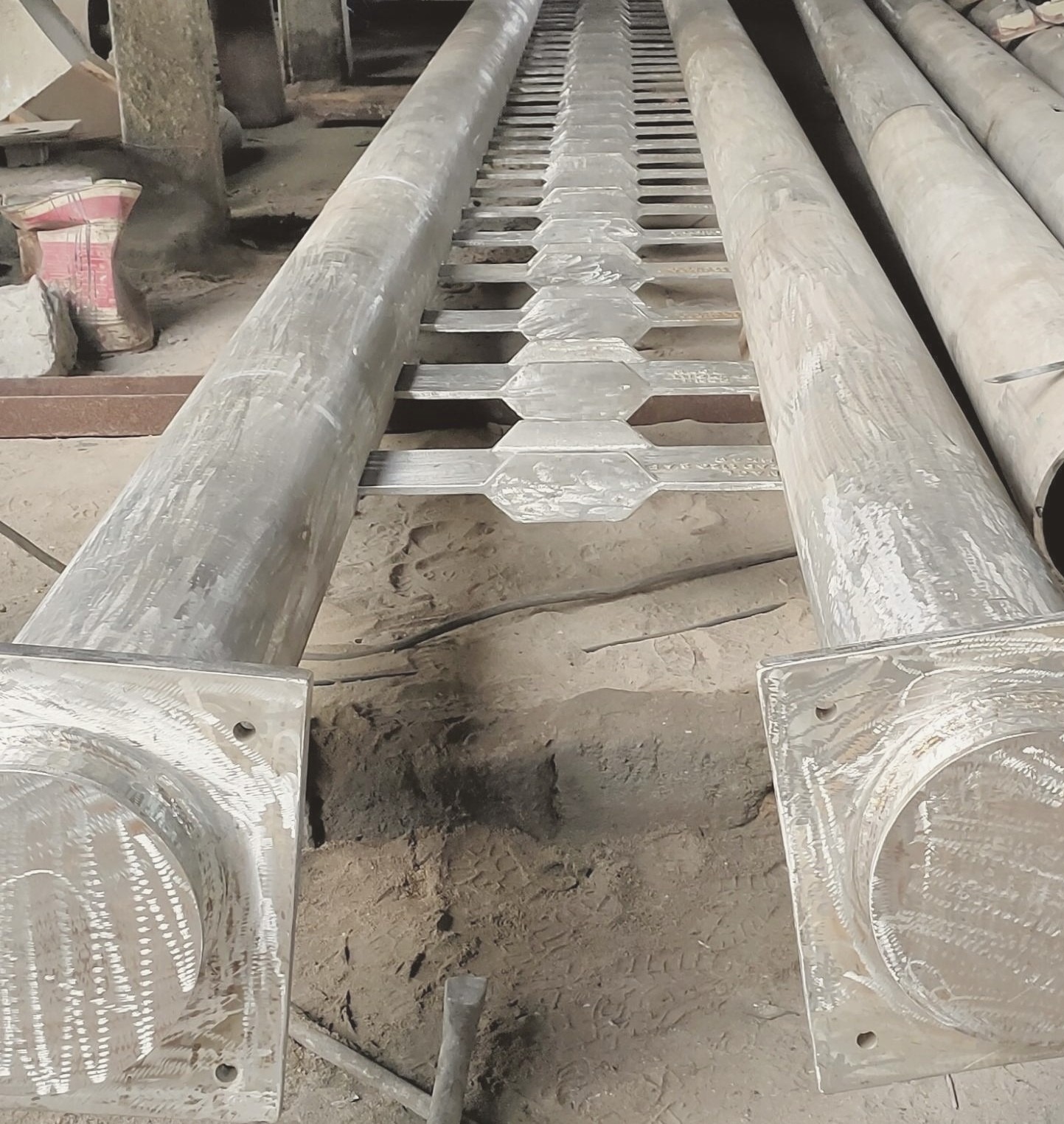

FurnaceFurnace tubes, liners & cylinders
Cast furnace tubes in U, W and Y configurations, plus centrifugal liners, sleeves and cylinders for furnace and process duty.

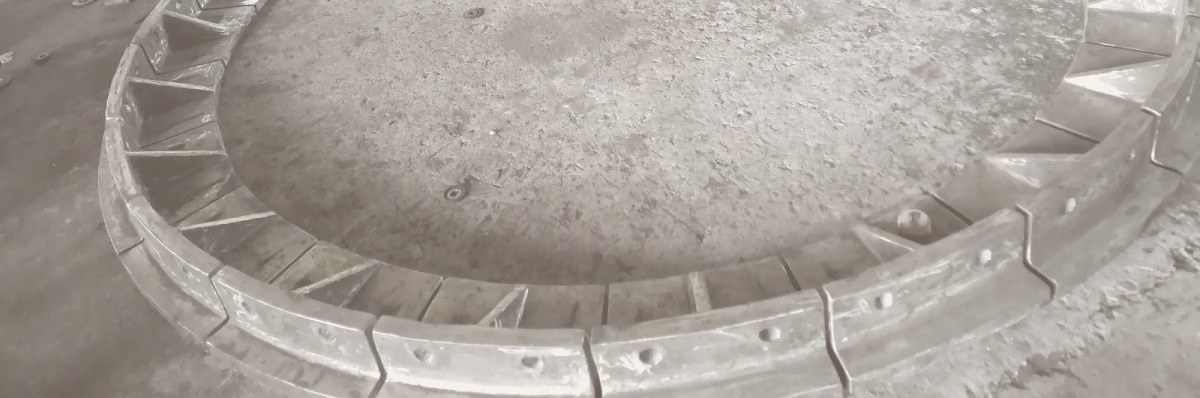

CentrifugalRings & sleeves
Centrifugally cast rings, bushes and sleeves, in grades to 50Cr-50Ni-Nb, machined to fit or as-cast.

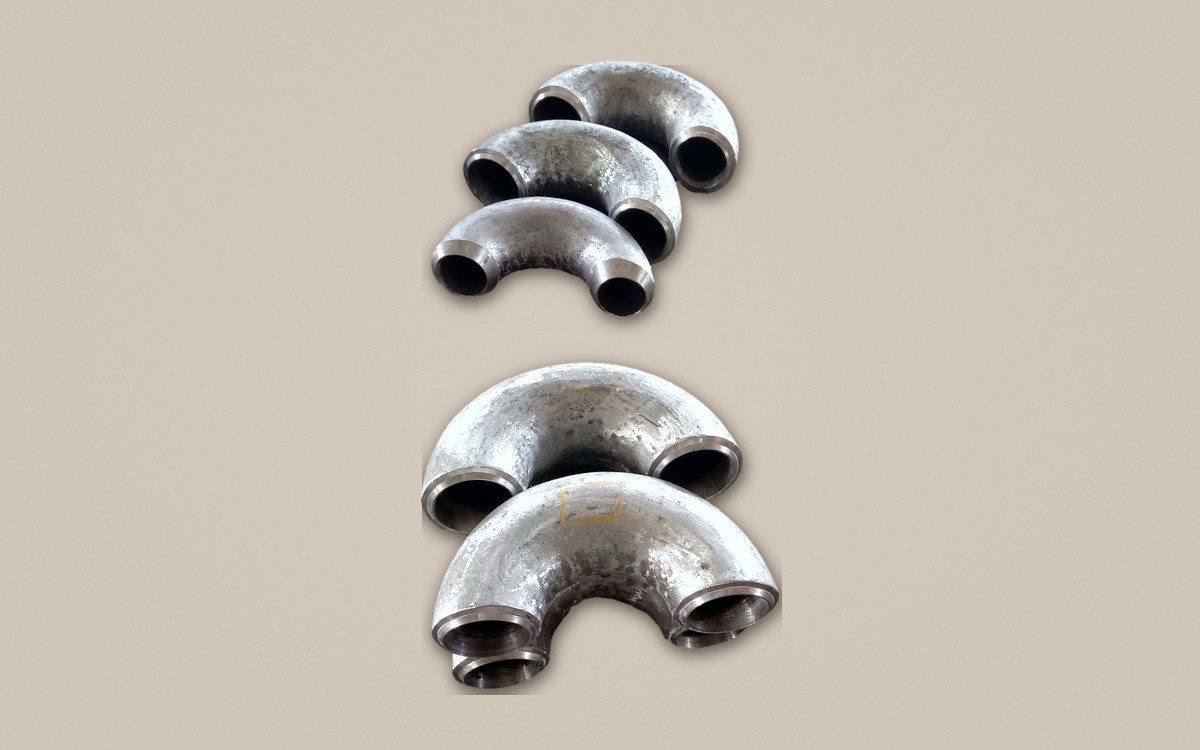

PipingBends, U-bends & Y-pieces
Cast bends, elbows, U-bends and Y-pieces for high-temperature service.

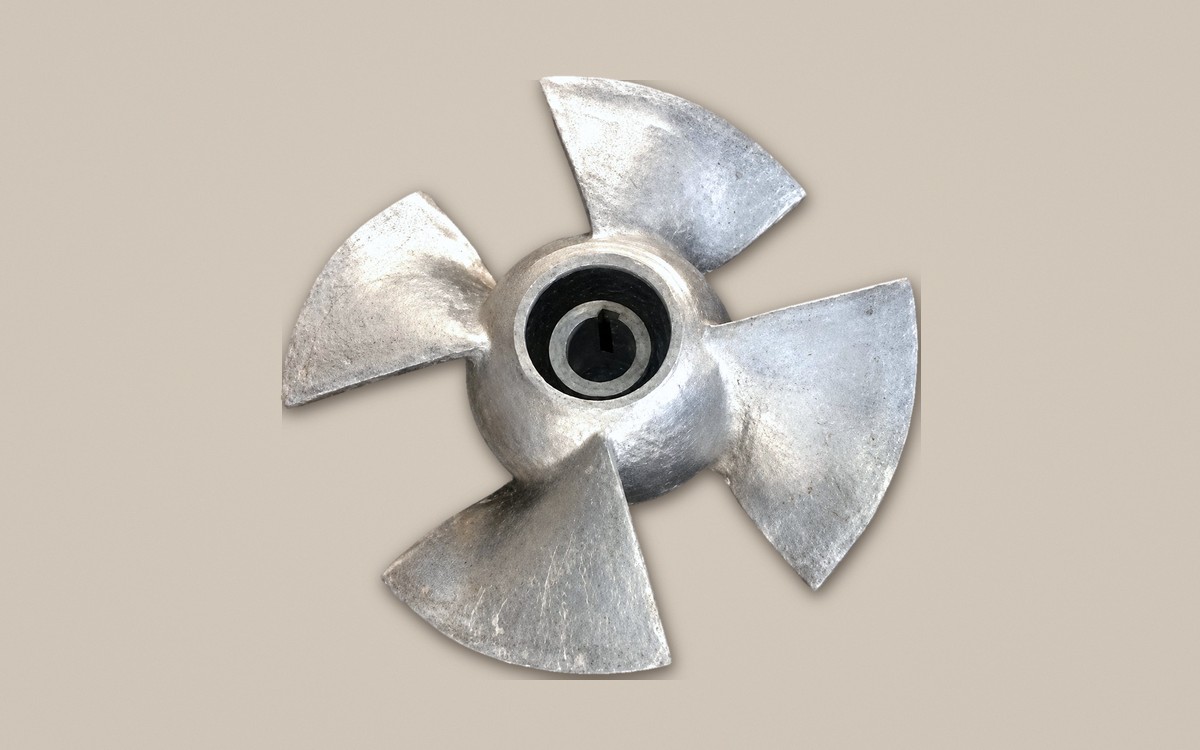

ProcessImpellers
Wear- and corrosion-resistant rotating castings.

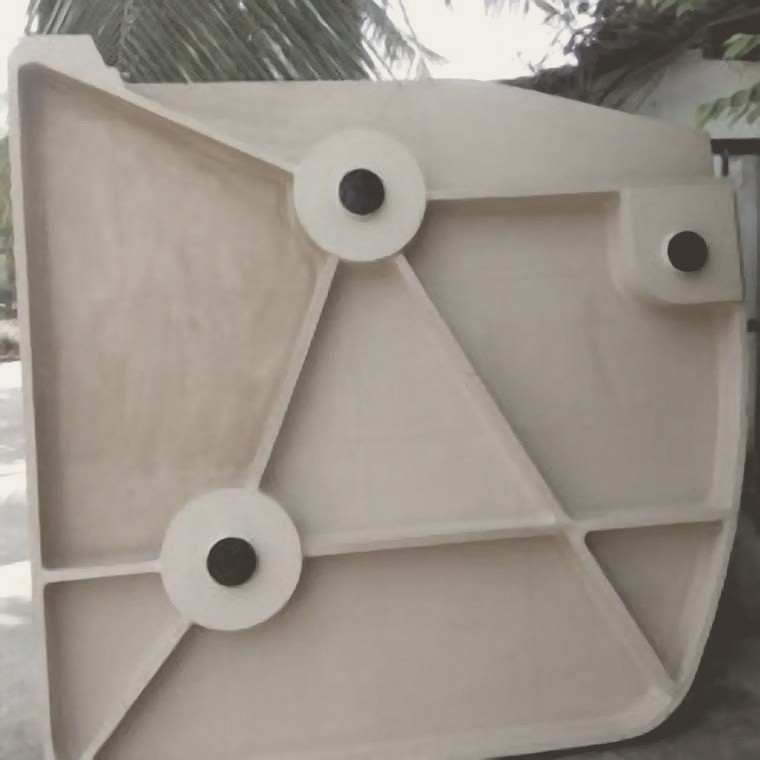

SteelHot coke bucket
Heavy single-piece castings for steel-plant duty.
The full range
Every casting, by service and grade
Grouped by what the part has to survive. Cast to ASTM, ASME, BS or IS; machined, heat-treated and inspected in-house.
Heat-resistant castings
For fired heaters, reformers and furnaces where steel creeps and scales.
- Reformer & heater tube sheets

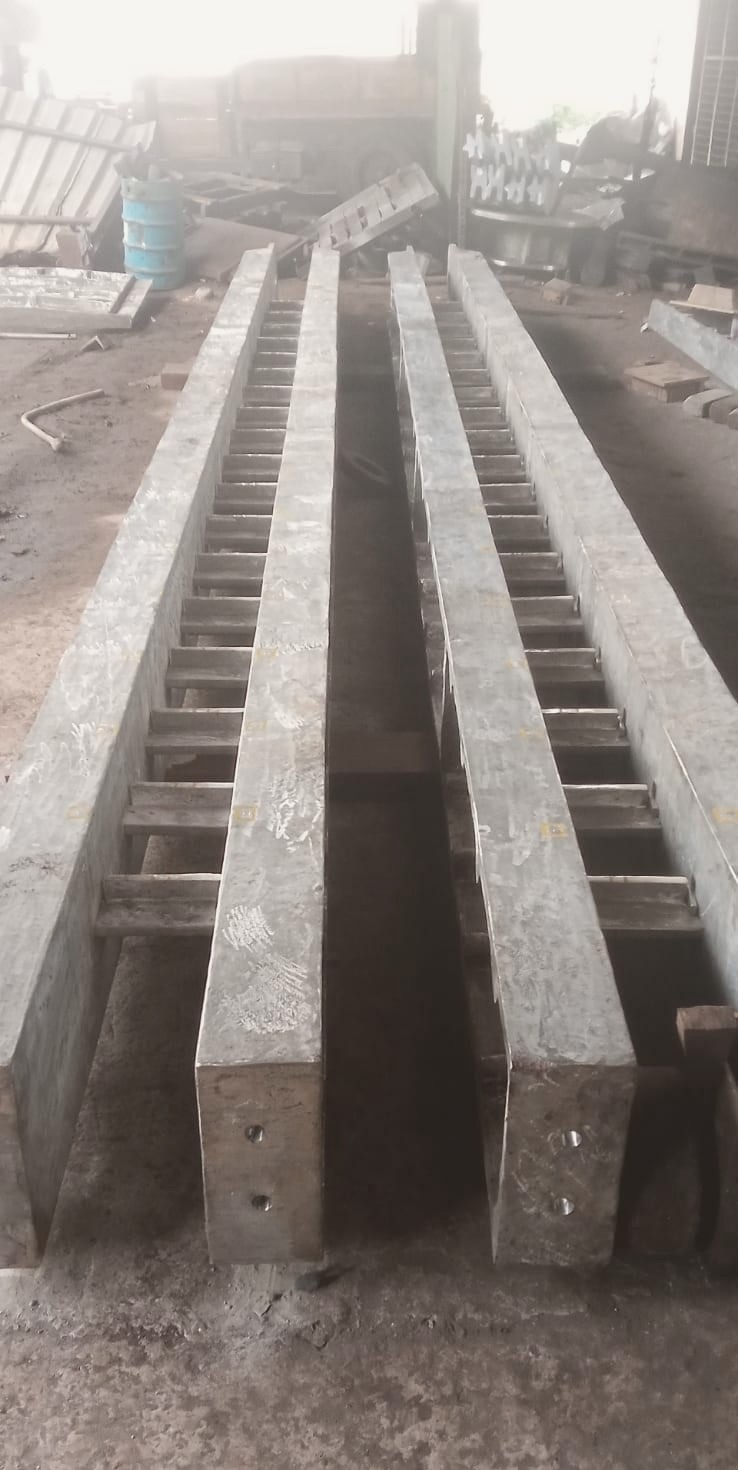

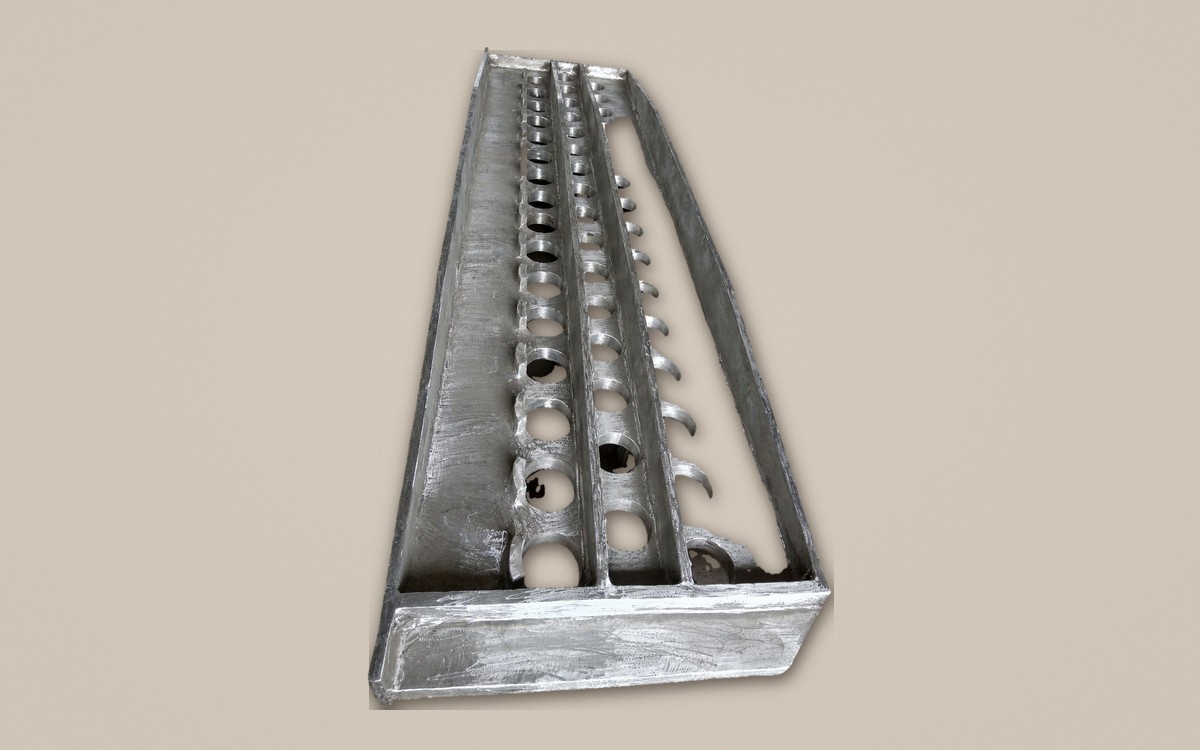

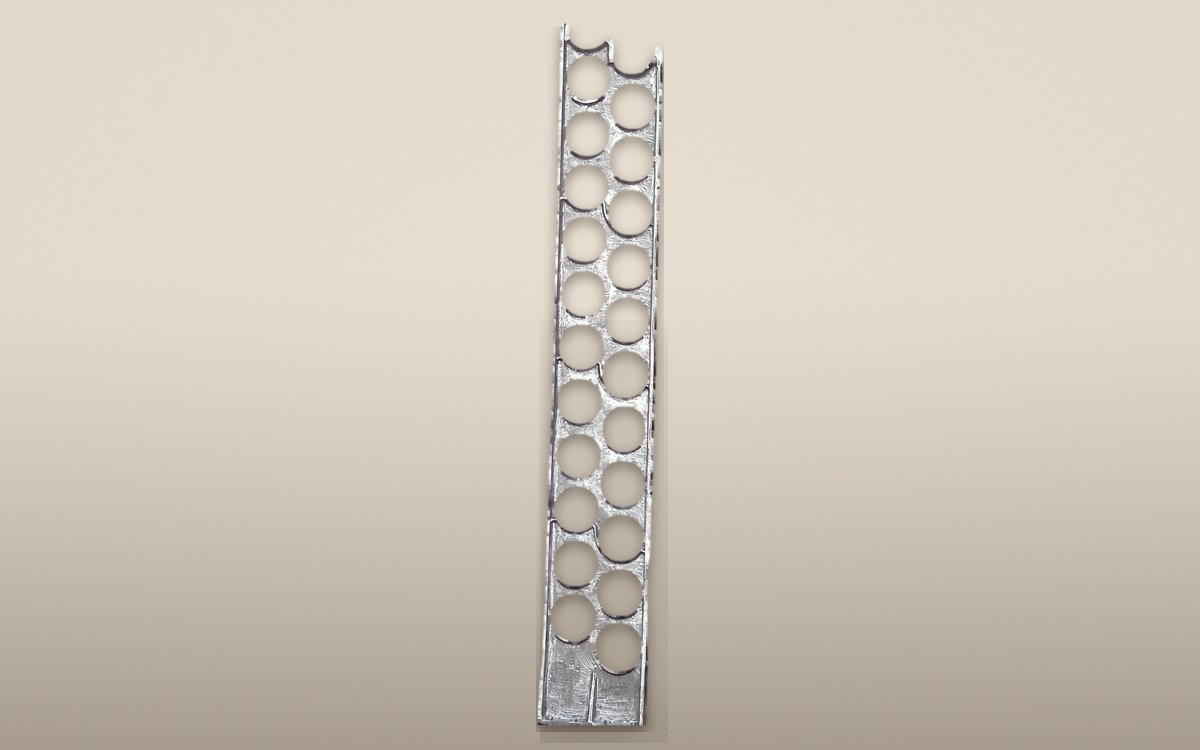

- Tube supports
- Roof & wall tube hangers
- Wall tube brackets
- Beam supports
- Manifolds
- X-mas trees
- Furnace tubes (U / W / Y)
- U-bends
- Y-pieces

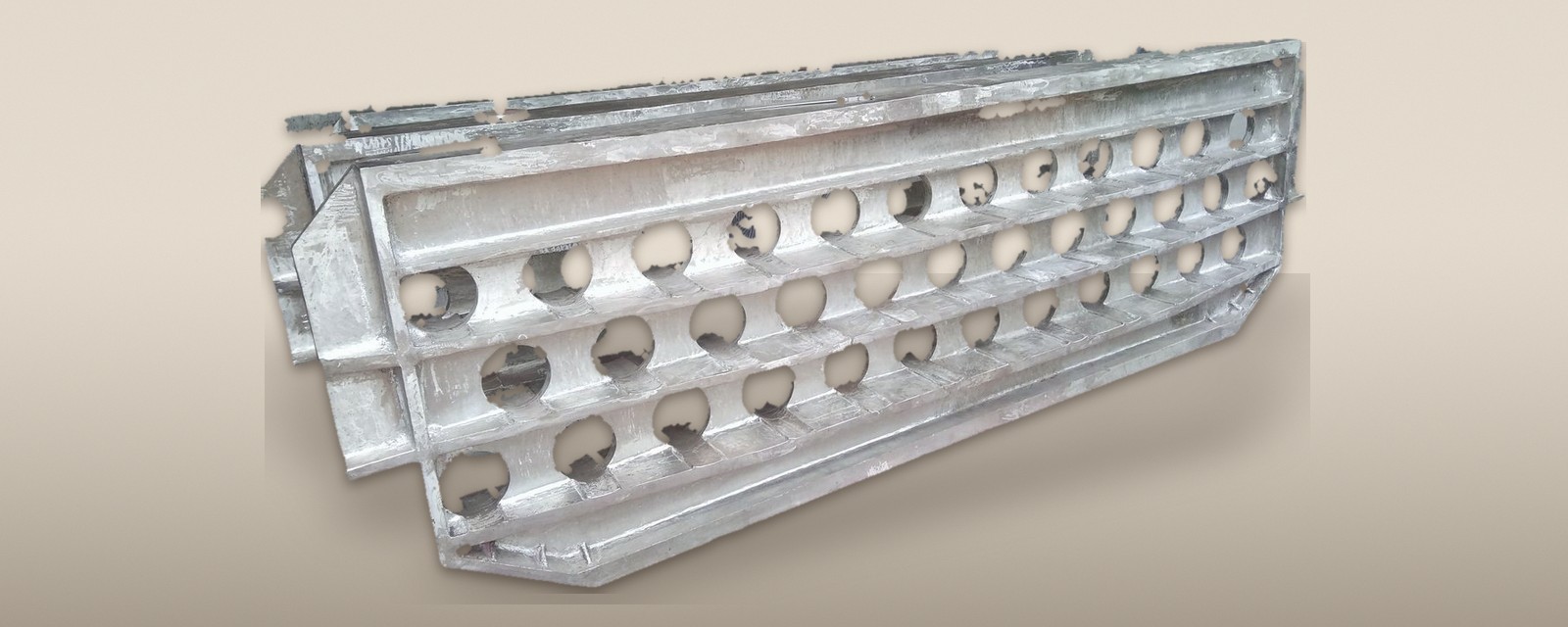

- Tube support assemblies

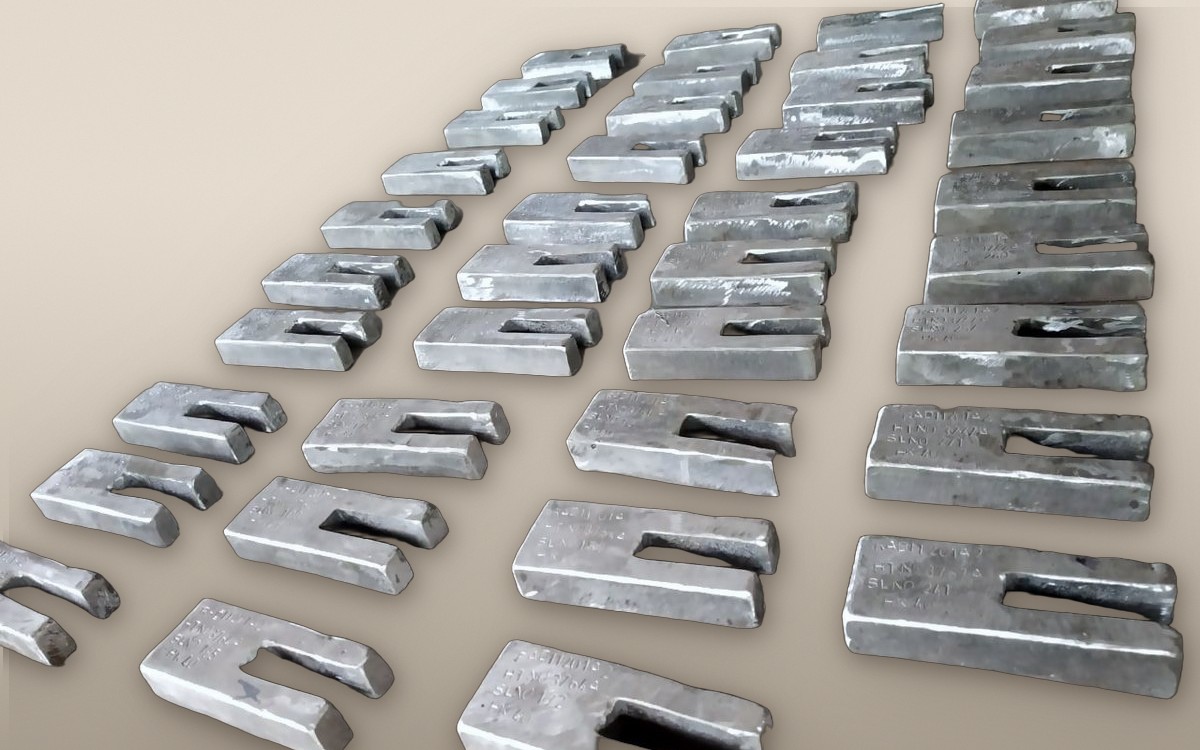

- Locking bars
- Hot screens
- Nose rings
Heat-treatment & galvanizing hardware
Furnace and line hardware for heat-treatment shops and galvanizing lines, in heat-resistant and high-nickel grades, cast and centrifugal.
- Radiant tubes (U / W / Y type)
- Hearth furnace rolls
- Walking-beam furnace rolls
- Rider bars
- Skid rails & buttons
- Control cages
- Charge baskets

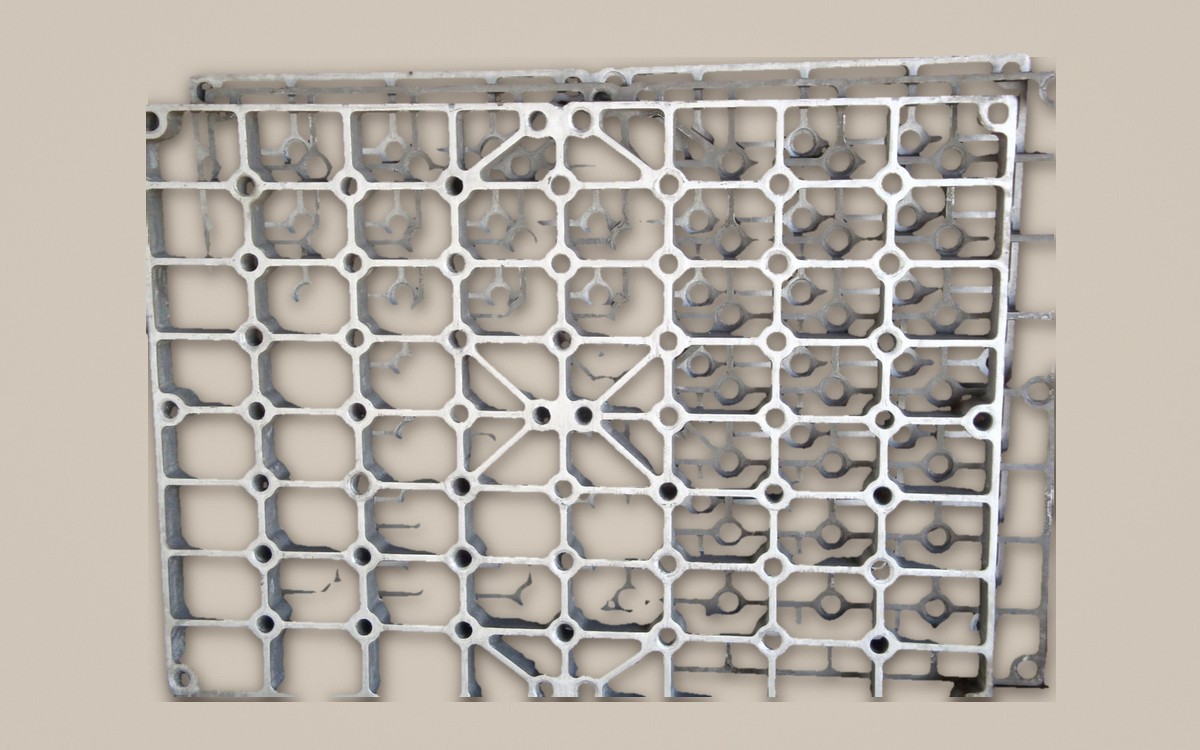

- Grids & trays
- Galvanizing pot rolls
- Sink & stabiliser rolls
Corrosion-resistant castings
For fuel-ash and hot-corrosion service in refineries and petrochemical furnaces.
- X-mas tree assemblies
- U-bends
- Tube support assemblies
- Tube sheets
- Hot-corrosion furnace internals
Wear-resistant castings
For coal crushing and grinding in thermal power and cement plants.
- Pulverised-fuel carrying bends
- Liner plates
- Bull ring segments
- Wear plates
- Grinding bowls
- Reducers
- Clinker grinder liners
- Bucket tooth points
- Grinding discs (10-roll / 14-roll)
- Crusher parts
- Impact blades
- Hammer tips
General & engineering castings
Carbon, low-alloy and non-ferrous castings for steel plants, pelletisation, mining and general engineering.
- Impellers
- Valve bodies
- Pig-casting-machine moulds
- Chain links
- Ceiling plates
- Inlet & outlet tip castings
- Clamping flanges
- Transfer chute castings
- Feed tube pipes
- Pellet car assemblies
- Grate bars

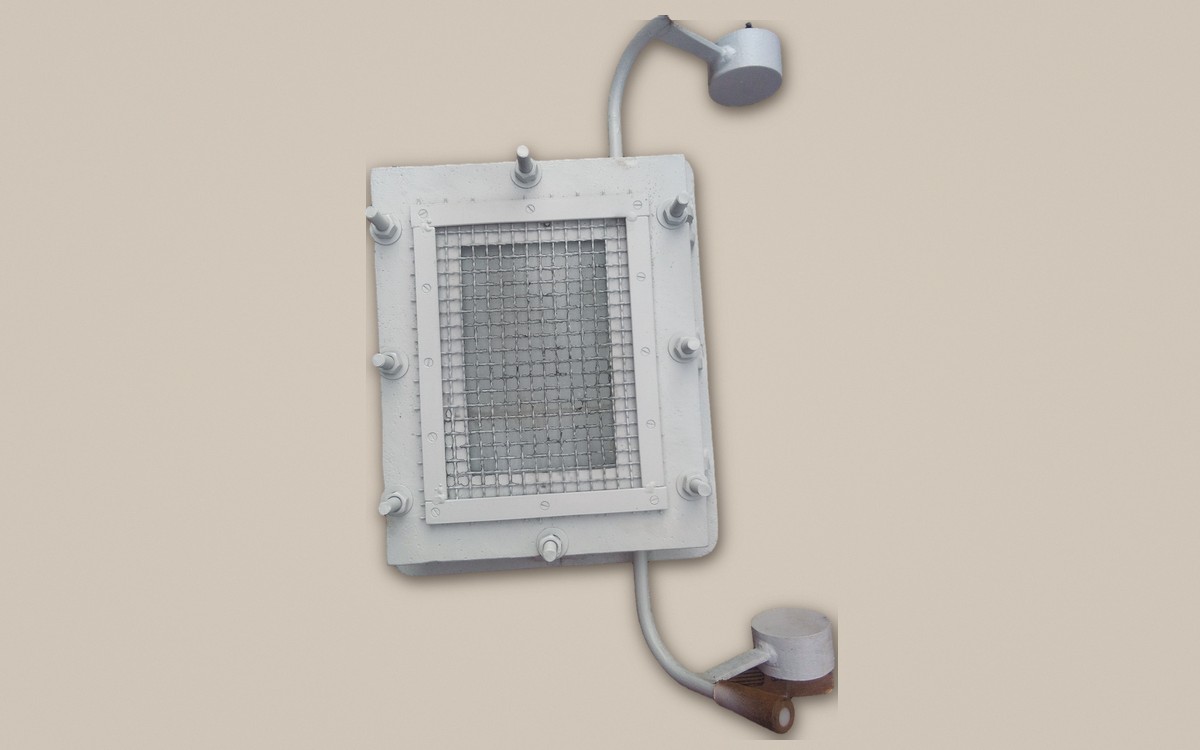

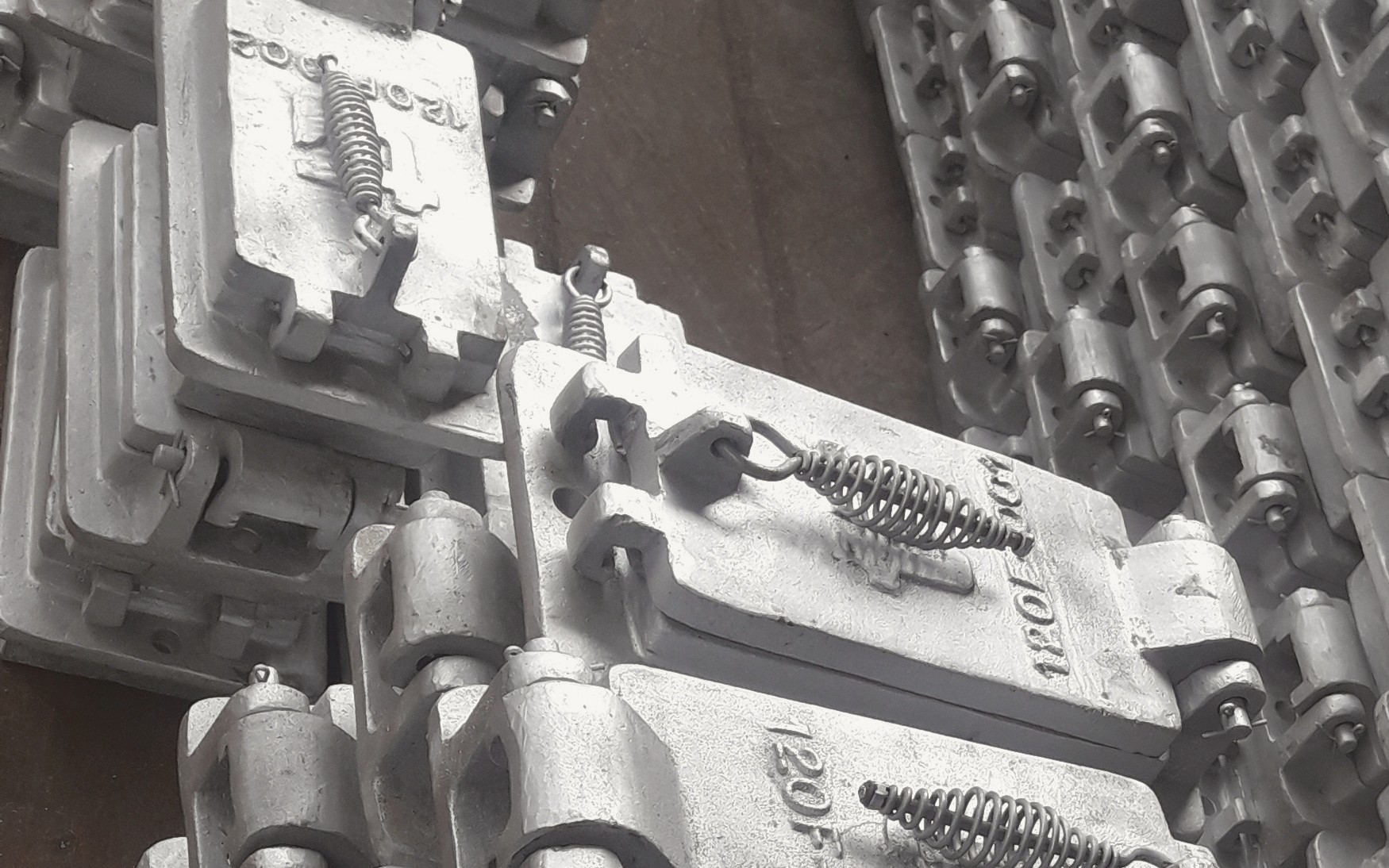

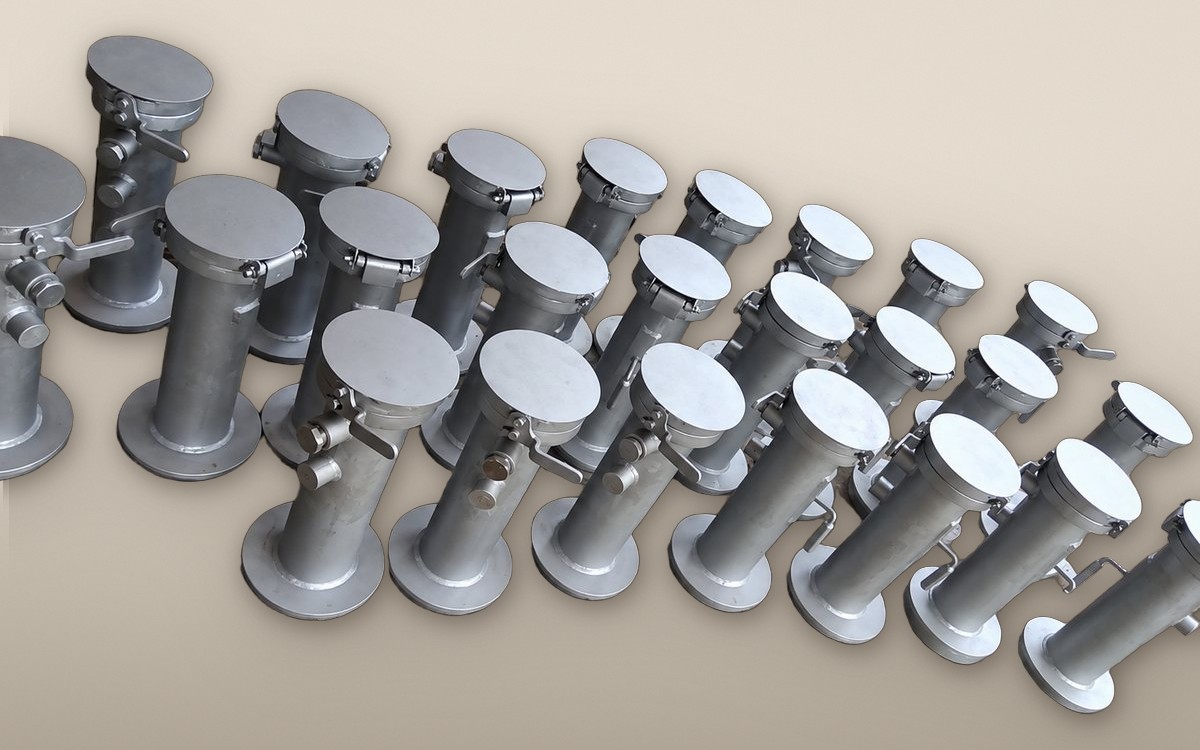

- Furnace observation & peep doors
- Blast furnace runners
- Hot coke buckets
- Tray-bottom castings
The signature product
The Lohman bimetallic segment
A kiln-seal casting for rotary kilns in the sponge-iron (DRI) industry, combining a tough backing with a hard wear face in a single part. It is the Lohman group's signature product, cast at Ni-Chrome, and is used across sponge-iron kilns for its long service life and reduced kiln downtime.
- Bimetallic kiln-seal segments
- Stationary & rotary kiln seals
- Wear segments
Alloy grades
Which alloy grades does Ni-Chrome cast?
From general carbon and low-alloy steels to heat, corrosion and wear-resistant super-alloys, cast to the designation and standard you specify. Figures are indicative; full datasheets on request.
- HK40 (ASTM A351 · UNS J94204 · 1.4848)
- HP-Nb (ASTM A297 · 1.4852)
- CT-15C (UNS N08151)
- HH
- HF
- HN
- IN657 / A560 50Cr-50Ni-Nb
- WCB (ASTM A216)
- WC9 (ASTM A217)
- SS316
- Ni-hard / high-chrome (IS 4771)
- Manganese steel (IS 276)
Cast to ASTM, ASME, BS and IS. The full grade reference lists every family we cast, with UNS and EN designations, composition and service temperatures. Need a full datasheet? Ask our metallurgists →
Have a drawing or a grade in mind?
Send the spec and we'll come back with what it takes to cast it.
